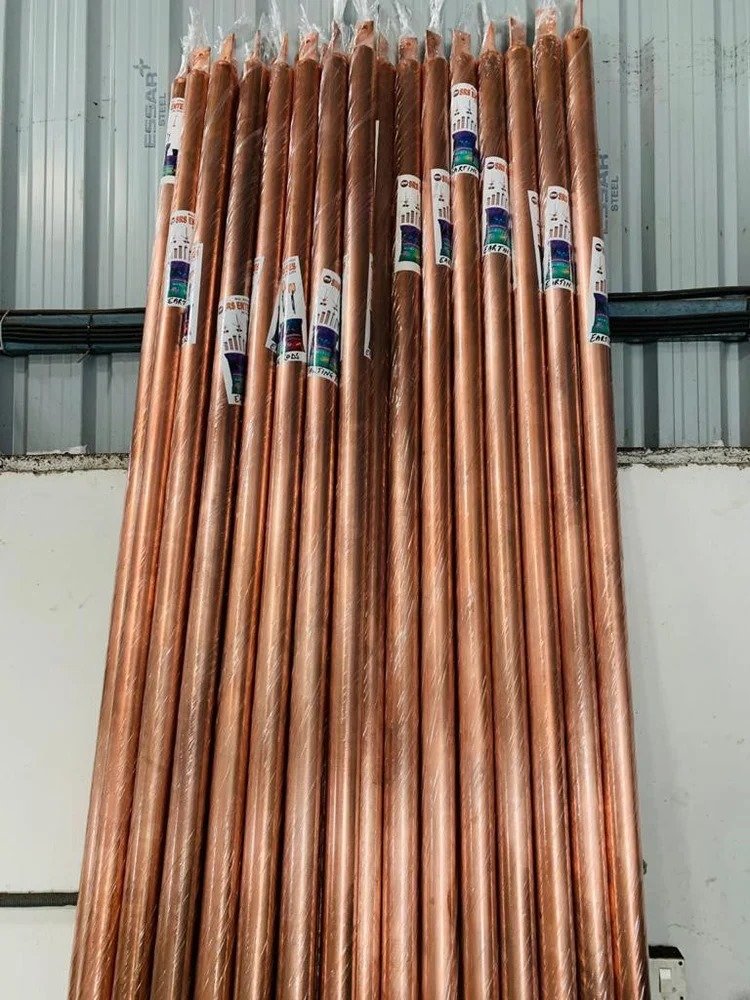

Copper Earthing Electrode

Ishan Earthing Solutions provides high-quality Copper Earthing Electrodes, designed for reliable and long-lasting grounding systems. These electrodes are made from either solid copper or copper-bonded steel, offering excellent conductivity and superior corrosion resistance. With a copper layer of 250 microns or more, our electrodes ensure a low-resistance path, effectively protecting electrical systems from faults, surges, and lightning strikes.

Available in various lengths (1.5 to 3 meters) and diameters (14 to 20 mm), Ishan's copper electrodes are suitable for a range of installations, including industrial, commercial, and residential sectors. The design ensures deep penetration into the ground, allowing for effective dissipation of fault currents.

12 MONTH GARRANTY COPPER CHEMICAL EARTHING ELECTRODE

MODEL NO.	ELECTRODE LENGTH	ELECTRODE DIA	INTERNAL CUNDUCTOR SIZE	INTERNAL CUNDUCTOR LENGTH	INNER CHEMICAL	TERMINAL DIA	PIPE QUALITY	PIPE TYPE	COPPER PURITY	Ground Compound Quantity	WARRANTY
CULPSS502000	2000	50	32X6 MM	150 MM (SHORT)	ELECTRIC CARBAN	10 MM	LIGHT WEIGHT	COPPER	99.98%	25 KG	12 MONTH
CULPSS503000	3000	50	32X6 MM	150 MM (SHORT)	ELECTRIC CARBAN	10 MM	LIGHT WEIGHT	COPPER	99.98%	50 KG	12 MONTH
CULPSS762000	2000	76	50X6 MM	150 MM (SHORT)	ELECTRIC CARBAN	10 MM	LIGHT WEIGHT	COPPER	99.98%	25 KG	12 MONTH
CULPSS763000	3000	76	50X6 MM	150 MM (SHORT)	ELECTRIC CARBAN	10 MM	LIGHT WEIGHT	COPPER	99.98%	50 KG	12 MONTH

36 MONTH GARRANTY COPPER CHEMICAL EARTHING ELECTRODE

MODEL NO.	ELECTRODE LENGTH	ELECTRODE DIA	INTERNAL CUNDUCTOR SIZE	INTERNAL CUNDUCTOR LENGTH	INNER CHEMICAL	TERMINAL DIA	PIPE QUALITY	PIPE TYPE	COPPER PURITY	Ground Compound Quantity	WARRANTY
CULPFS502000	2000	50	32X6 MM	2100 MM (FULL )	ELECTRIC CARBAN	10 MM	LIGHT WEIGHT	COPPER	99.98%	25 KG	36 MONTH
CULPFS503000	3000	50	32X6 MM	3100 MM (FULL )	ELECTRIC CARBAN	10 MM	LIGHT WEIGHT	COPPER	99.98%	50 KG	36 MONTH
CULPFS762000	2000	76	50X6 MM	2100 MM (FULL )	ELECTRIC CARBAN	10 MM	LIGHT WEIGHT	COPPER	99.98%	25 KG	36 MONTH
CULPFS763000	3000	76	50X6 MM	3100 MM (FULL)	ELECTRIC CARBAN	10 MM	LIGHT WEIGHT	COPPER	99.98%	50 KG	36 MONTH

60 MONTH GARRANTY COPPER CHEMICAL EARTHING ELECTRODE

MODEL NO.	ELECTRODE LENGTH	ELECTRODE DIA	INTERNAL CUNDUCTOR SIZE	INTERNAL CUNDUCTOR LENGTH	INNER CHEMICAL	TERMINAL DIA	PIPE QUALITY	PIPE TYPE	COPPER PURITY	Ground Compound Quantity	WARRANTY
CUMPSS502000	2000	50	32X6 MM	150 MM (SHORT)	ELECTRIC CARBAN	10 MM	MEDIUM WEIGHT	COPPER	99.98%	25 KG	60 MONTH
CUMPSS503000	3000	50	32X6 MM	150 MM (SHORT)	ELECTRIC CARBAN	10 MM	MEDIUM WEIGHT	COPPER	99.98%	50 KG	60 MONTH
CUMPSS762000	2000	76	50X6 MM	150 MM (SHORT)	ELECTRIC CARBAN	10 MM	MEDIUM WEIGHT	COPPER	99.98%	25 KG	60 MONTH
CUMPSS763000	3000	76	50X6 MM	150 MM (SHORT)	ELECTRIC CARBAN	10 MM	MEDIUM WEIGHT	COPPER	99.98%	50 KG	60 MONTH

72 MONTH GARRANTY COPPER CHEMICAL EARTHING ELECTRODE

MODEL NO.	ELECTRODE LENGTH	ELECTRODE DIA	INTERNAL CUNDUCTOR SIZE	INTERNAL CUNDUCTOR LENGTH	INNER CHEMICAL	TERMINAL DIA	PIPE QUALITY	PIPE TYPE	COPPER PURITY	Ground Compound Quantity	WARRANTY
CUMPSS502000	2000	50	32X6 MM	2100 MM (FULL )	ELECTRIC CARBAN	10 MM	MEDIUM WEIGHT	COPPER	99.98%	25 KG	72 MONTH
CUMPSS503000	3000	50	32X6 MM	150 MM (SHORT)	ELECTRIC CARBAN	10 MM	MEDIUM WEIGHT	COPPER	99.98%	50 KG	60 MONTH
CUMPSS503000	3000	50	32X6 MM	2100 MM (FULL )	ELECTRIC CARBAN	10 MM	MEDIUM WEIGHT	COPPER	99.98%	50 KG	72 MONTH
CUMPSS762000	2000	76	50X6 MM	2100 MM (FULL )	ELECTRIC CARBAN	10 MM	MEDIUM WEIGHT	COPPER	99.98%	25 KG	72 MONTH
CUMPSS763000	3000	76	50X6 MM	2100 MM (FULL )	ELECTRIC CARBAN	10 MM	MEDIUM WEIGHT	COPPER	99.98%	50 KG	72 MONTH

84 MONTH GARRANTY COPPER CHEMICAL EARTHING ELECTRODE

MODEL NO.	ELECTRODE LENGTH	ELECTRODE DIA	INTERNAL CUNDUCTOR SIZE	INTERNAL CUNDUCTOR LENGTH	INNER CHEMICAL	TERMINAL DIA	PIPE QUALITY	PIPE TYPE	COPPER PURITY	Ground Compound Quantity	WARRANTY
CUHPSS502000	2000	50	32X6 MM	150 MM (SHORT)	ELECTRIC CARBAN	10 MM	HAVEY WEIGHT	COPPER	99.98%	25 KG	84 MONTH
CUMPSS503000	3000	50	32X6 MM	150 MM (SHORT)	ELECTRIC CARBAN	10 MM	HAVEY WEIGHT	COPPER	99.98%	50 KG	84 MONTH
CUMPSS762000	2000	76	50X6 MM	150 MM (SHORT)	ELECTRIC CARBAN	10 MM	HAVEY WEIGHT	COPPER	99.98%	25 KG	84 MONTH
CUMPSS763000	3000	76	50X6 MM	150 MM (SHORT)	ELECTRIC CARBAN	10 MM	HAVEY WEIGHT	COPPER	99.98%	50 KG	84 MONTH

120 MONTH GARRANTY COPPER CHEMICAL EARTHING ELECTRODE

MODEL NO.	ELECTRODE LENGTH	ELECTRODE DIA	INTERNAL CUNDUCTOR SIZE	INTERNAL CUNDUCTOR LENGTH	INNER CHEMICAL	TERMINAL DIA	PIPE QUALITY	PIPE TYPE	COPPER PURITY	Ground Compound Quantity	WARRANTY
CUHPFS502000	2000	50	32X6 MM	2100 MM (FULL )	ELECTRIC CARBAN	10 MM	HAVEY WEIGHT	COPPER	99.98%	25 KG	120 MONTH
CUHPFS503000	3000	50	32X6 MM	3100 MM (FULL )	ELECTRIC CARBAN	10 MM	HAVEY WEIGHT	COPPER	99.98%	50 KG	120 MONTH
CUHPSS762000	2000	76	50X6 MM	2100 MM (FULL )	ELECTRIC CARBAN	10 MM	HAVEY WEIGHT	COPPER	99.98%	25 KG	120 MONTH
CUHPFS763000	3000	76	50X6 MM	3100 MM (FULL)	ELECTRIC CARBAN	10 MM	HAVEY WEIGHT	COPPER	99.98%	50 KG	120 MONTH
